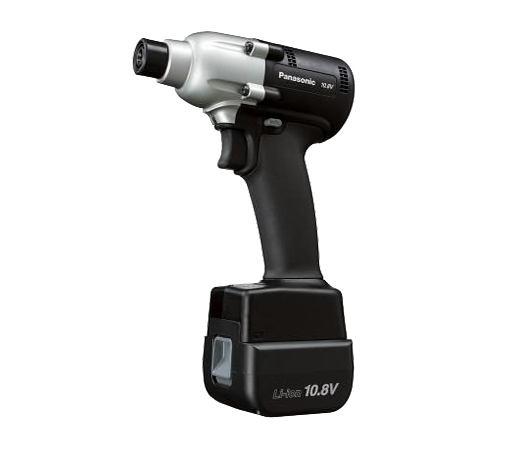

10.8V Cordless Mechnical Pulse Tool, 6-30Nm
EYFLA5A
Products Details
Assure accurate, repeatable fastening on assembly lines where production efficiency and quality control are essential. Featuring torque controlled range of 6-30Nm and a 1/4″ hex quick-change chuck, our programmable 10.8V auto shut-off mechanical pulse tool produces superior ergonomics with virtually no torque reaction. Cordless battery-powered design provides freedom of movement and long life emissions-free operation for demanding manufacturing plants
Key Features
- Virtually no torque reaction
- 1/4″ hex quick change chuck
- Auto shut-off prevents over torques
- Operator visual pass/fail indicator
- Tool body only
Product Specifications
| Application Capacity/Working Speed | Approx. 800pcs/pack Approx. 0.8sec/pc (M8: 23Nm, Stage:22) |
| Applications | M6 Screw (Tensile Bolt) M8 Bolt (Normal Bolt) |
| Battery Capacity | 3.0Ah or 2.0Ah |
| Battery Indication Lamp | 3 Stage |
| Brushless Motor | YES |
| Charging Time – Full | 45 min |
| Drive | 1/4″ Hex Quick Change Chuck |
| Flush Detection Modes | L1: For applications with no pulses before flush point or when fastening fragile materials like plastic to metal. L2: For prevailing torque during run down and varying joint rate applications. |
| Hybrid Switch | YES |
| Impact Per Minute | Stage 1: 0 – 2500 Stage 2: 0 – 2800 Stage 3: 0 – 3000 Stage 4-30 & F: 0 – 3600 |
| LED Light | On/Off Switch. (Light will turn off automatically after five minutes of no use) |
| Low Battery Disable | Yes |
| Maximum Torque | Approx. 90 Nm (66 Ft. Lbs.) (M14 bolt) |
| No Load Speed (RPM) | Stage 1: 0 – 1300 Stage 2: 0 – 1450 Stage 3-5: 0 – 1550 Stage 4-30 & F: 0 – 2300 |
| Rehit Prevention | Possible to set per 0.1 sec. between 0 – 3 sec. |
| Tightening Confirmation Lamp | Tightening is finished: Green light Tightening is not finished: Red light |
| Torque Range | Approx. 6-30Nm (4.4-22 Ft. Lbs) |
| Torque Setting | 30 Stage + F (without torque setting mode) |
| Voltage | 10.8V |
| Wireless Communication | No |
| Dimensions | 6 7/32″ x 2 21/64″ x 9 25/32″ |
| Weight | 2.8 lbs |
